in Process Server by (21.5k points)

3 Answers

0 votes
by (16.1k points)
selected by

Best answer

Latest ER Diagram for BPM Process Server 8.6 Advanced is attached

+1 vote
by

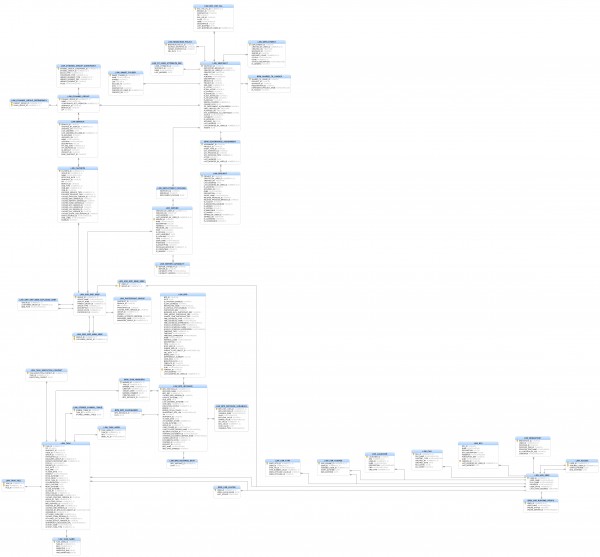

We found that there are not many foreign keys defined to generate a complete ER Diagram, but some links are there, you can interpret the joins by looking at the column names across similar set of tables, any here is the ER diagram for Process Server

+1 vote
by

Performance Server ER Diagram is simpler and has more joins defined
